F1TENTH Race Vehicle

A predictive ROS2 system using an Extended Kalman Filter and RGB-D sensor fusion to avoid high-speed dynamic obstacles.

September 2025 – December 2025

Team: CPEN 391 Group 5
Core Stack: ROS2 (Foxy), Python, OpenCV, Intel RealSense, F1TENTH Platform

Project Overview

Standard autonomous racing focuses on static wall-following or gap-finding. This project, Dynamic Object Avoidance (DOA), pushes the F1TENTH platform to its limits by enabling it to detect, track, and predict the trajectory of small, fast-moving obstacles (like tennis balls) that are traditionally invisible to LiDAR.

Technical Insights: The EKF Pipeline

The “secret sauce” of this project is the 4-State Constant Velocity Kalman Filter. Because camera-based object detection is inherently noisy and the depth data from a moving car can be sparse, we implemented a filter to maintain a stable estimate of the object’s position and velocity.

1. State Estimation with Kalman Filtering

The filter maintains a state vector: \(\mathbf{x}_k = \begin{bmatrix} p_x \\ p_y \\ v_x \\ v_y \end{bmatrix}\)

  • Prediction Step: We project the ball’s position using the time delta (\(\Delta t\)) and the constant velocity assumption.
  • Correction Step: We fuse raw measurements from the HSV vision pipeline. This allows the car to “remember” where the ball is and where it’s going, even if the camera drops a frame.

2. Predictive Masking

Once we have a filtered velocity, the system calculates a Time-to-Collision (TTC). If a collision is predicted, we don’t just “turn”—we perform Predictive Masking. We virtually “paint” an obstacle into the LiDAR scan at the predicted impact point. This forces the standard Gap Follower algorithm to treat the future collision zone as a physical wall, resulting in a smooth, proactive maneuver rather than a reactive jerk.

Vision & Control Strategy

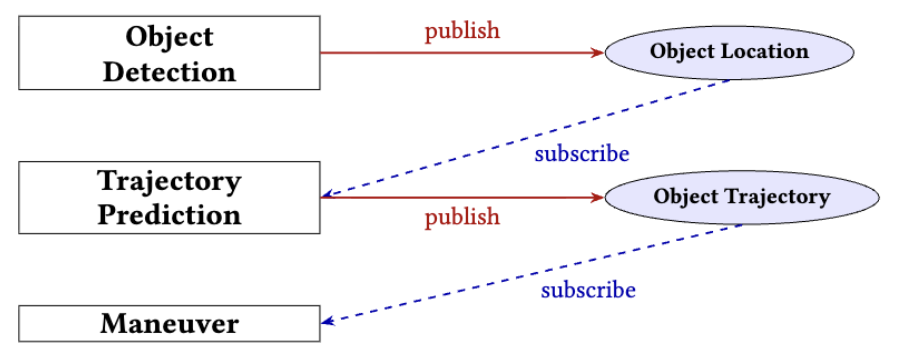

The system uses a modular ROS2 architecture consisting of five primary nodes:

  • Object Detection: HSV segmentation + Pinhole Projection (\(Z_{\text{cam}} \frac{u - C_X}{F_X}\)).
  • Trajectory Prediction: EKF-based state estimation.
  • Maneuver Node: Dynamic speed adjustment and steering using a PD controller (\(Kp = 0.33, Kd = 0.1\)).

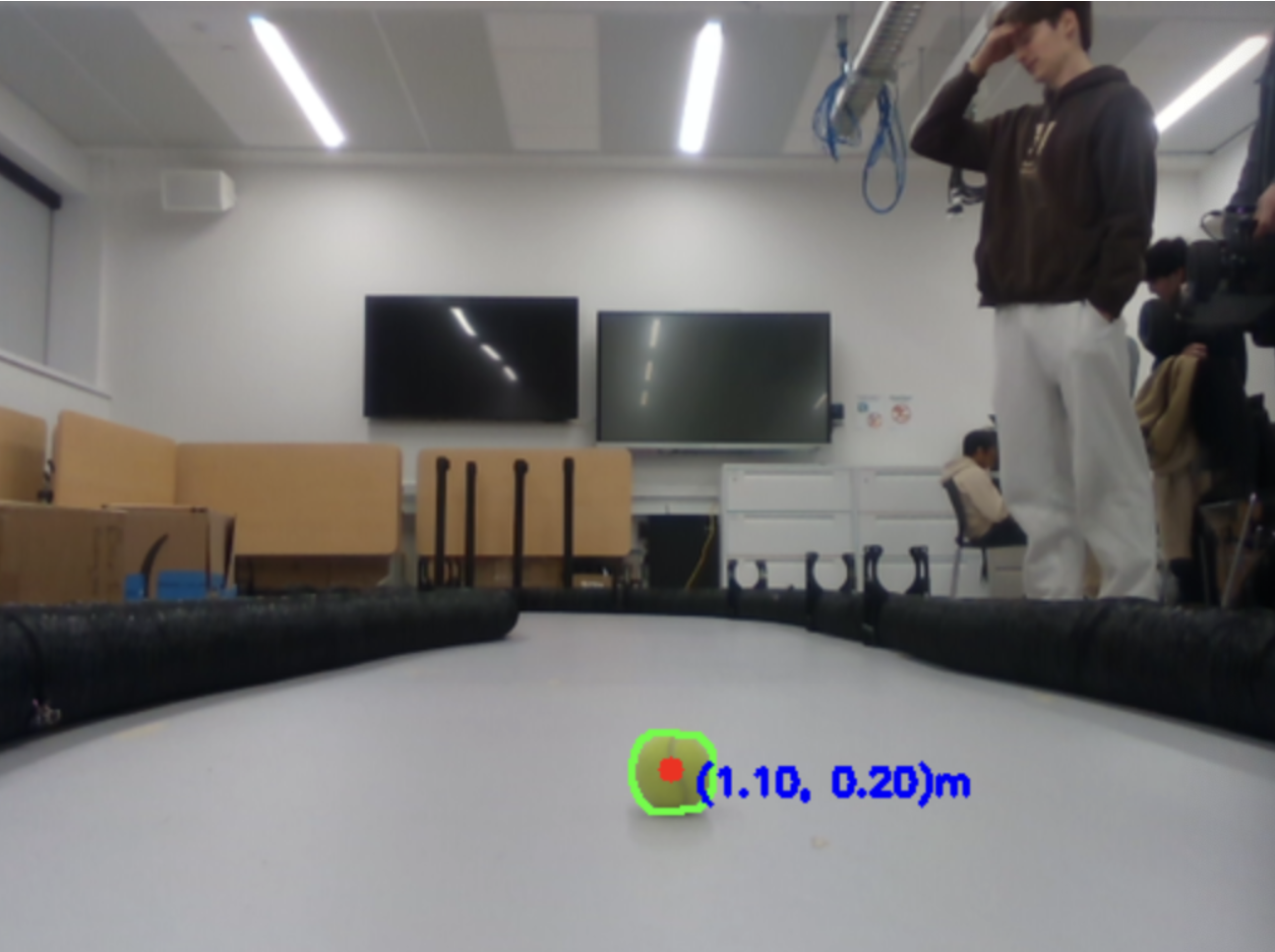

3D Position Projection in Action and State Machine

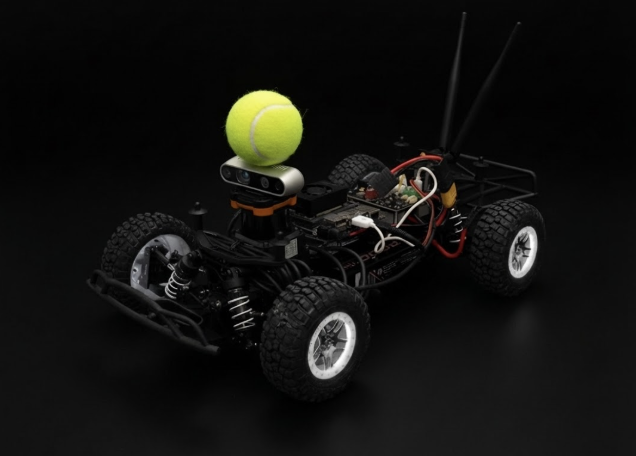

F1Tenth Car Aura Farming
